J-EIII Series Medium Size Machine
The J-EIII series is the machine which has come out of the fusioning of thousands of user's requests and the most modern molding techniques, which JSW believes to be the best of all. Fast cycle molding that directly affects productivity, stable supporting mechanism built by high rigid mold platens and the molding support system which utilizes the sophisticated computer technology.
The machine shows improvements made not only in the basic functions which directly affects the molding operation but many other areas such as operational convenience, safety and environmental factors, for example, energy conservation and space saving. The greatest convenience to users was the basic design concept of the machine with flexibility and high precision.
 |
| Mold Clamping Mechanism finely designed in the pursuit of High Precision and Operational Convenience |
• Rigid Mold Platen.
• Moving Platen Support (Two Roller System).
• Fast Cycle and Energy Saving.
• Safety Devices.
• Automatic Greasing.
• Self-lubricating Bushings with Greasing Time Alarm.
• All Remote Setting of Mold Height and Movable Platen.
|
| Injection System to Achieve Low Temperature Homogenous Kneading and Fast Cycle Molding |
• N2000F Cylinder.
• GP2 Screw.
• Cylinder Module System (optional).
• PID Temperature Control/Nozzle Temperature Control (SSR).
• HT Screw Head for precision and stable molding (optional).
• M7 Screw (recommended optional).
• "IVS CONTROL" Holding Pressure Changeover.
|
| Space Saving and Energy Conservation Realized by Unique Designing with Environmental Protection Consciousness |
• Space Saving Design.
• Hydraulic Oil Preheating Circuit.
|
| Reliable Controller (SYSCOM 2000) backed by Sophisticated Electronic Control Technology |
• TFT Color LCD with Touch Panel.
• Easy touch panel uses a pictorial display.
• Built-in Controller.
• Language Switching Function.
• Print-Out.
• Centeralized control system (optional).
|
| High Response Control to meet demands of Molding at Optimum Pressure, J-EIII-P series |
• High Speed Accumulator and Servo Injection.
• Closed-loop Control.
• Optimum Pressure Molding (Soft Pack Servo System).
|

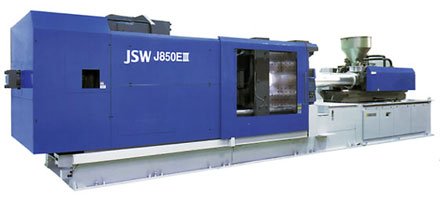

J-EIII Series Large Size Machine
These are the prestige machines. The J-EIII Series utilizes new technologies developed one after another, that enable the transformation and ever-expanding potentiality of plastics into a realistic form.
* Same features as Medium Size Machine.
|
|
